1. Why choose edging wastewater treatment System?
The machining of glass creates glass finings，which not only pollutes the process water and affects the quality of glass processing. Fine scratches on the glass surface caused by the recycling of glass grinding wastewater.and will also cause the water outlet of the glass processing machine to be clogged, causing the machine to not discharge water and the equipment to rust easily. The grinding wheel will wear out, the glass will burn and explode,and the service life of the machine will also be shortened. Therefore, the treatment of glass edging wastewater is necessary.
Minxin edging wastewater filtration plants helps solve this problem.It not only greatly reduces the time-consuming cleaning of the machine's wastewater treatment system, but also extends the service life of the glass processing machine with clean process water,significantly improve the quality of glass processing and production efficiency.
2. Glass Manufacturing Wastewater Solution
The treatment process of this system is to collect wastewater discharged from multiple glass edging machine or beveling machine, drill machine, CNC etc into a wastewater collection pool, an aeration system is installed at the bottom of the wastewater collection pool to prevent glass powder from settling at the bottom of the pool and ensuring glass powder’s concentration distribute more evenly in the water. Compared to traditional sedimentation devices, this aeration system can let all glass powder pump to the integrated reaction tank for wastewater treatment. The wastewater is pumped to the integrated reaction tank, at the same time, the flocculant-mixed wastewater is pumped to the integrated reaction tank through the dosing system for wastewater treatment. The integrated reaction tank integrates water pumping, dosing, reaction, and drainage. The treated clean water is discharged to the clean water collection pool for glass edge grinding, which can greatly reduce the blockage and damage of the water nozzle of the glass edge grinding machine, extend the service life of the machine and improve the edge grinding efficiency. The solid waste treated by the efficient integrated reaction tank is discharged into the sludge collection pool. and then pumped to the filter press to press it into a solid glass cake. the filtered clean water can be discharged to the wastewater collection pool or clean water collection pool.

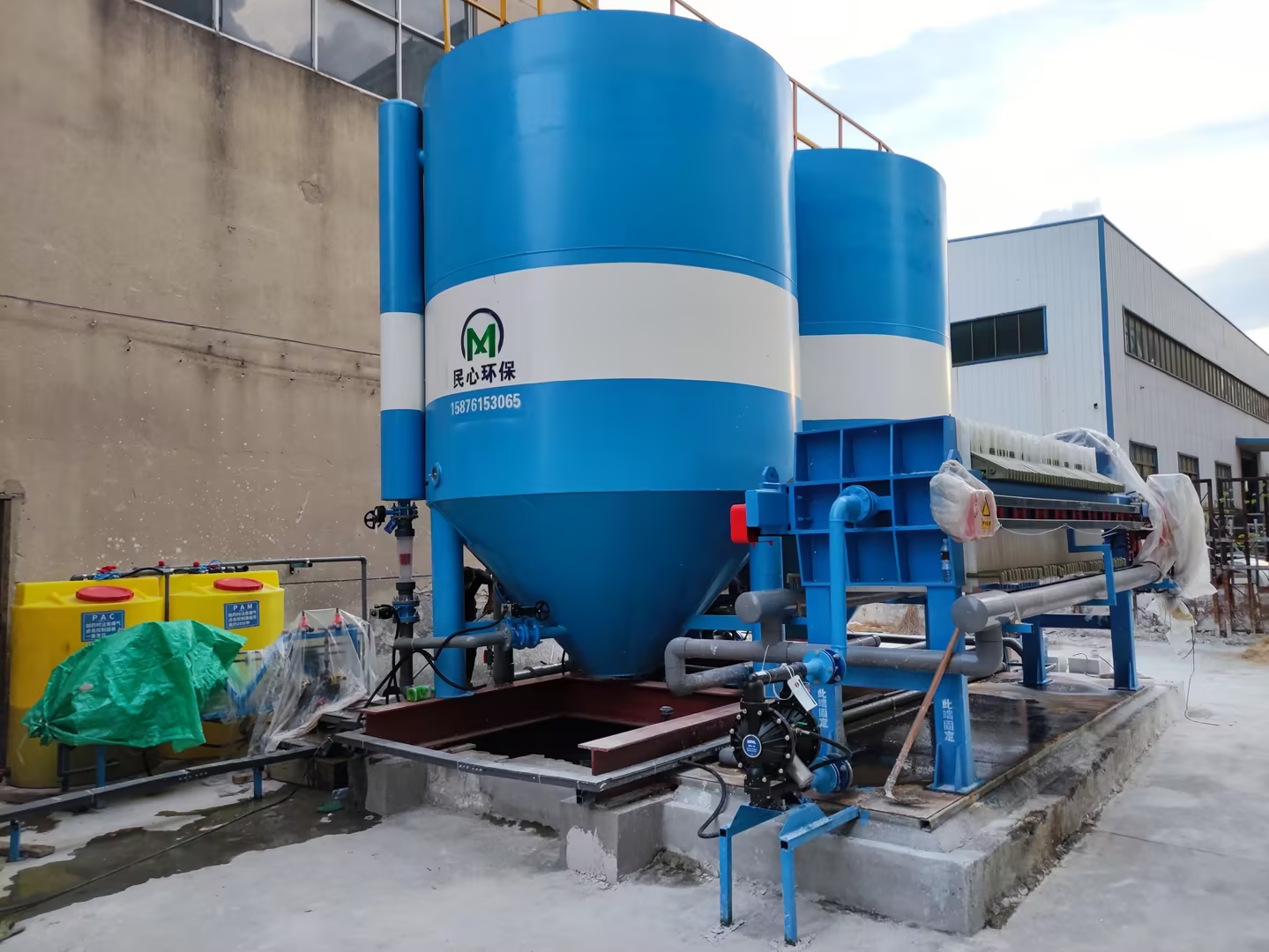

3. Wastewater treatment machine Configuration
4.Treatment water quality effect
| No | Item | Water inlet quality | Purified water quality |
| 1 | PH | Edging wastewater | 6~9 |
| 2 | SS(mg/L) | Edging wastewater | <30 |
| 3 | COD(mg/L) | Edging wastewater | <60 |
| 4 | Color | Edging wastewater | <30 |
| 5 | AMMONIA(mg/L） | Edging wastewater | <25 |
Process item | System Model | Processing Capacity(Ton/hour) | System Qty/Set | Filter press | Electricity load | Footprint |
Glass edging wastewater | MX-10T | 10 T/H | 1 | 10㎡ | 1.5KW | 12㎡ |
MX-20T | 20 T/H | 1 | 10㎡ | 1.7KW | 15㎡ | |
MX-30T | 30 T/H | 1 | 20㎡ | 2.5KW | 25㎡ | |
MX-45T | 45 T/H | 1 | 30㎡ | 3.5KW | 28㎡ | |
MX-60T | 60 T/H | 1 | 40㎡ | 6KW | 30㎡ | |
MX-75T | 75 T/H | 1 | 40㎡ | 6.5KW | 33㎡ | |
MX-90T | 90 T/H | 1 | 60㎡ | 7KW | 38㎡ | |
MX-100T | 100 T/H | 1 | 80㎡ | 12KW | 45㎡ | |
MX-120T | 120 T/H | 2 | 100㎡ | 12KW | 60㎡ | |
MX-150T | 150 T/H | 2 | 120㎡ | 15KW | 65㎡ | |
MX-180T | 180 T/H | 2 | 150㎡ | 15KW | 70㎡ | |
MX-200T | 200 T/H | 2 | 160㎡ | 20KW | 80㎡ | |
MX-300T | 300 T/H | 3 | 240㎡ | 30KW | 100㎡ | |
MX-400T | 400 T/H | 4 | 300㎡ | 40KW | 150㎡ | |
MX-500T | 500 T/H | 5 | 400㎡ | 50KW | 180㎡ | |
MX-600T | 600 T/H | 6 | 480㎡ | 60KW | 200㎡ | |
MX-700T | 700 T/H | 7 | 560㎡ | 70KW | 300㎡ |

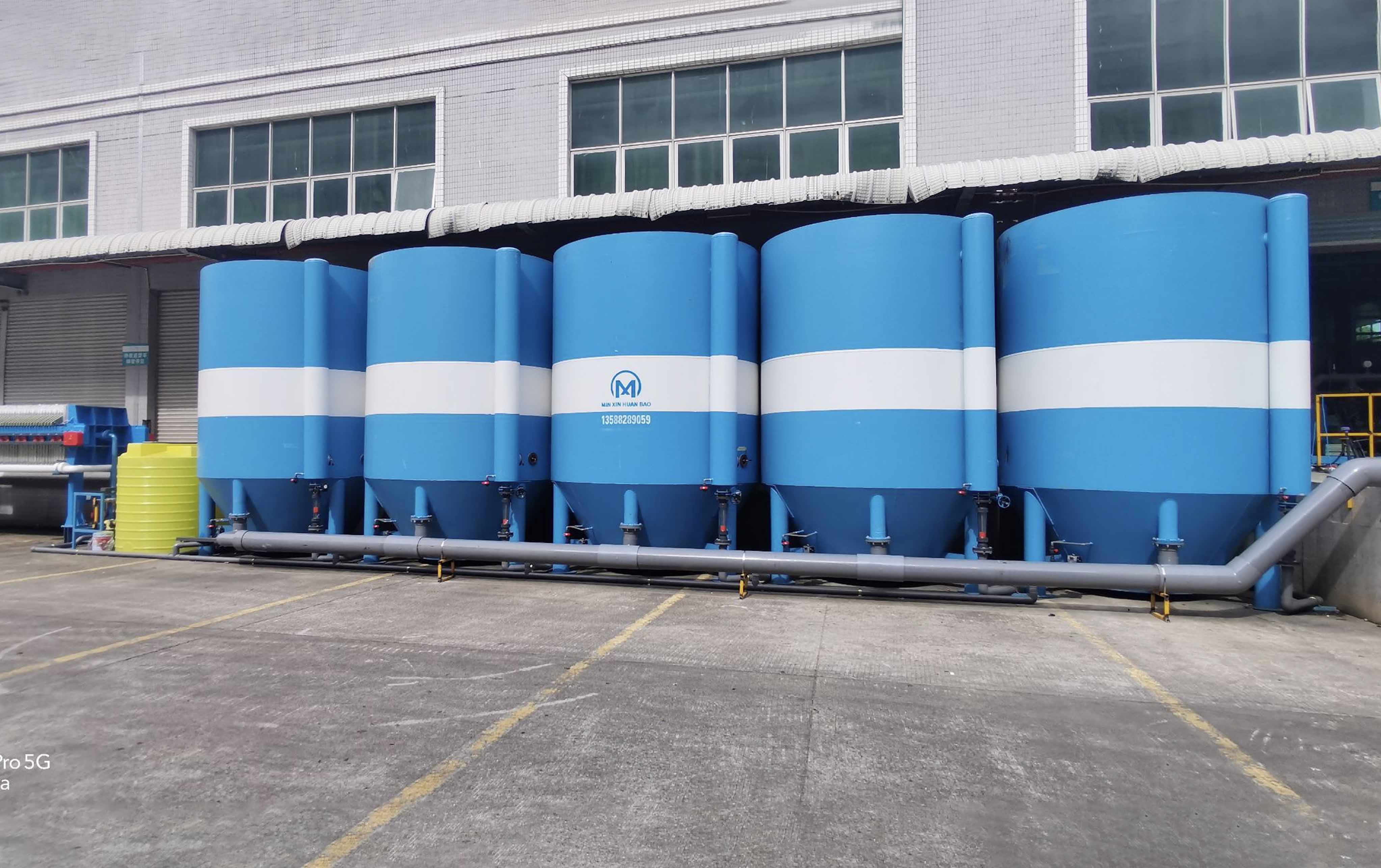

5. More than 600 installation cases in total
The equipment is equipped with advantages: clear water treatment; Large processing water volume; Fully automatic control; Low operating cost and high configuration;small footprint;low investment etc. It is one of the most cost-effective products both in domestic and overseas, and is the preferred choice for wastewater treatment equipment in glass deep processing industry.
We have installed our equipment for over 600 glass processing plants in China, we are the top manufacturer of edge grinding wastewater treatment equipment in China. Among them, high-quality glass deep processing enterprises such as CSG HOLDING (based in Wujiang, Chengdu, Tianjin, Xianning, Xi‘an,Zhaoqing etc.), Xinyi Group (based in Deyang, Zhangjiagang, Yingkou,Jiangmen,Beihai), Yaopi Glass, Haojing Group, Shandong Yaohua, Shandong Xinguan , Sichuan Xionggang, Anhui yanlongji,Jiangsu Sorate, Wuxi Haida, Huahui Glass, Jiangxi Changhao, Jiangsu Jiacheng, Guangdong Xinhua Qiang, Guangxi Shenguang Energy Conservation, Linyi Zhongbo Penghao, etc use our company's equipment. Currently we are actively exploring overseas markets, and our equipment has been exported to the United States, Australia, Indonesia, Vietnam, Cambodia, Ukraine, Outer Mongolia etc.
